Flush Pressure Transducer
◆High measuring accuracy.
◆Suitable for middle and high pressure measurement.
◆Anti-corrosive, anti-impact.
◆Flush diaphragm pressure port.
Flush Pressure Transducer

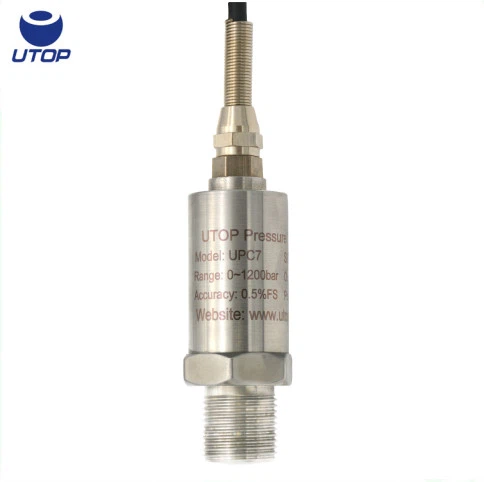

Description of flush pressure transducer
Based on strain gauge technology, UPC7 flush pressure transducer uses strain gauges as sensing elements. The strain gauges form a Wheatstone bridge on back of the diaphragm to sensing the deformation of the diaphragm, this deformation results from the pressure which act vertically to the diaphragm.
UPC7 strain gauge flush pressure transducer is mainly used for static or dynamic pressure measurement of flowing medium, for example power conduit equipment's input or output gas or liquid pressure, internal combustion engine pipeline pressure and so on.
Features of flush pressure transducer
◆High measuring accuracy
◆Suitable for middle and high pressure measurement
◆Anti-corrosive, anti-impact
◆Flush diaphragm pressure port
Specifications of flush pressure transducer
| pressure ranges | 0~10bar...6000bar |
| overload pressure | 150%FS |
| output signal | 1.5mV/V(stansard),2mV/V |
| accuracy | 0.25%FS, 0.5%FS(standard) |
| long-term stability | <0.2%FS/year |
| suggested supply voltage | 5VDC~12VDC |
| compensated temperature range | -10~+60℃ |
| operating temperature range | -20~+100℃ |
| temperature coefficient of zero | 0.2%FS/10℃ |
| temperature coefficient of span | 0.2%FS/10℃ |
| input resistance | 380±5 ,1000±5 Ω Ω |
| process connection | G1/4 or others |
| electrical connection | 3m PVC cables |
| material of wetted part | 17-4PH |
| material of housing | 1Cr18Ni9Ti |
