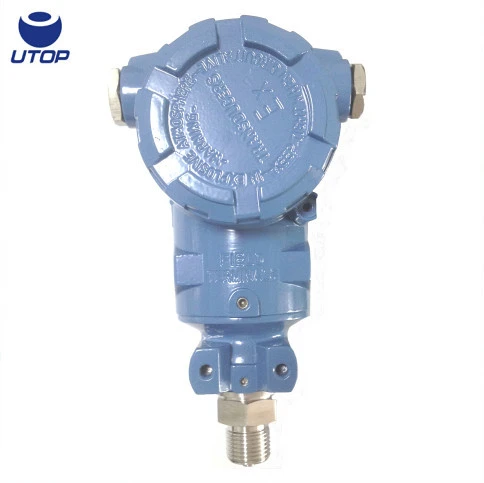

HART Pressure Transmitter
●Pressure range: -1...0~0.1...1000bar.
●2-wire 4~20mA output with HART, compatible with ROSEMOUNT Product.

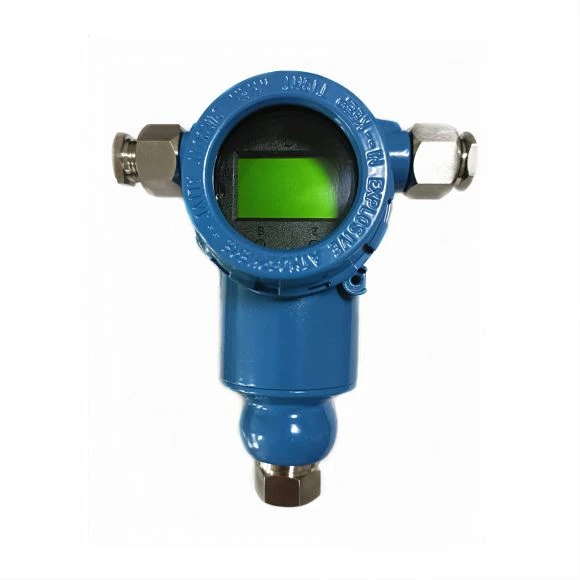

●The indicator can be rotated for easy reading.
●High accuracy and good stability.
●Explosion: intrinsic safety or flame proof.
Xi'an UTOP Measurement Instrument Co., Ltd. is one of the most reliable manufacturers and suppliers of hart pressure transmitter in China. Please feel free to buy high quality hart pressure transmitter at competitive price from our factory. If you have any enquiry about price list, please feel free to email us.

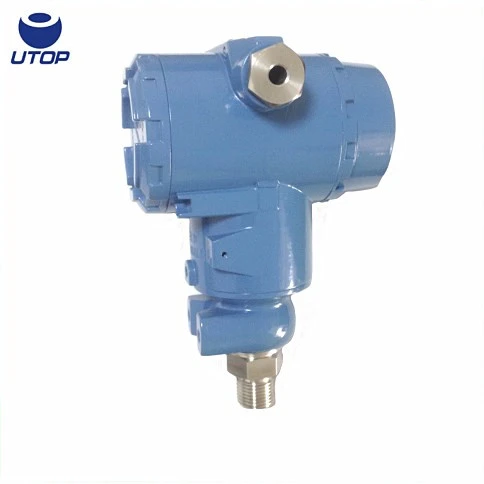

Hart Pressure Transmitter
Description of hart pressure transmitter
UIB5 hart pressure transmitter adopts high quality pressure sensor chip, and stores the correction parameters like sensor's ambient temperature, pressure and input/output characteristics through the built-in memory E2PROM, then operated by CPU microprocessor, automatic temperature compensation, signal amplification, V/I conversion and A/D conversion, and output 4~20mA standard signal, and also can be made with Hart communication simultaneously. During communication, the frequency signal will not have any disturbance to the 4~20mA signal.
UIB5 hart pressure transmitter is featured with good temperature, pressure and output characteristics. It can replace the general pressure transmitter completely and is widely used for automatic measurement & control in petroleum industry, chemical industry, electric power, environmental protection.
Features of hart pressure transmitter
●Pressure range: -1...0~0.1...1000bar
●2-wire 4~20mA output with HART, compatible with ROSEMOUNT Product.
●The indicator of the Hart pressure transmitter can be rotated for easy reading
●High accuracy and good stability
●Explosion: intrinsic safety or flame proof
Specifications of hart pressure transmitter
| pressure ranges | -1...0~0.1...1000bar |
| overload pressure | 150%FS |
| pressure type | gauge, absolute, sealed gauge,differential |
| output signal | 4~20mA with Hart communication p rotocol |
| accuracy | 0.1%FS,0.2%FS(standard) |
| load resistance | RL =(U-12V)/0.02A(4~20mA Current output) U-loop voltage(V) |
| long-term stability | <0.2%FS/year |
| supply voltage | 12~36VDC |
| compensated temperature range | -10~70℃ |
| operating temperature range | -40~+85℃;( -40 ~+120℃ option ) |
| temperature coefficient of zero | 0.2%FS/10℃ |
| temperature coefficient of span | 0.2%FS/10℃ |
| process connection | G1/2 or others |
| electrical connection | M20x1.5 |
| material of wetted part | 316SS |
| material of diaphragm | 316LSS |
