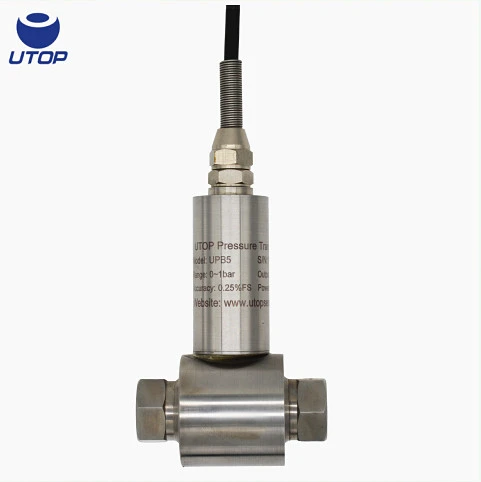

Water Differential Pressure Transmitter
※Good static pressure, good ability of anti-impact and overload pressure.
※Reliable performance, good long term stability.
※Strong reversed polarity protection and current limiting protection.
※Integrated stainless steel construction design, small volume.
Xi'an UTOP Measurement Instrument Co., Ltd. is one of the most reliable manufacturers and suppliers of water differential pressure transmitter in China. Please feel free to buy high quality water differential pressure transmitter at competitive price from our factory. If you have any enquiry about price list, please feel free to email us.

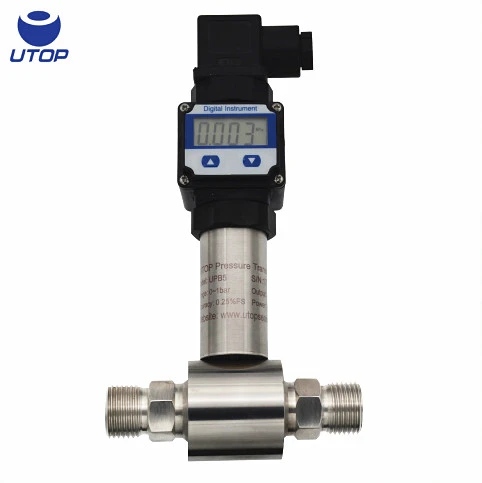

Water Differential Pressure Transmitter
Description
UPB5 water differential pressure transmitter uses piezo-resistive silicon differential pressure sensors with stainless steel isolated diaphragm as measuring elements. Made from 316L stainless steel and designed of rigid and robust construction, this water differential pressure transmitter is suitable for application in harsh environment and measurement with corrosive pressure media.
Features
※ Good static pressure, good ability of anti-impact and overload pressure
※ Reliable performance, good long term stability
※ Strong reversed polarity protection and current limiting protection
※ Integrated stainless steel construction design, small volume
Specifications
| pressure medium | gas or dilute liquid compitable to stainless steel |
| pressure ranges | 0~0.1bar...35bar |
| pressure type | differential(D) |
| overload pressure | 200%FS(positive pressure side),100%FS(negative pressure side)* |
| output signal | 4~20mA, 0~5V, 0~10V, 1~5V,0.5~4.5V |
| accuracy | 0.1%FS(range>1bar),0.25%FS(standard), 0.5%FS |
| supply voltage | 12~36VDC |
| compensated temperature range | -10~+70℃ |
| operating temperature range | -20~+80℃ |
| storage temperature range | -40~+120℃ |
| process connection | G1/4 internal thread or others |
| electrical connection | DIN43650 connector or others |
| material of wetted part and housing | 1Cr18Ni9Ti |
| material of pressure membrane | 316L |
| sealing | n-Butyronitrile or fluoro-rubber sealing ring |
Application
UPB5 water differential transmitter has widely been used for measurement of differential pressure of pipeline fluids in petroleum industry, chemical industry, electric power hydrology etc.
