2-relay Ouptut Digital Pressure Switch Controller

1. 4-digit 0. 56" LED display, no value error.
2. Switch point can be set between zero and span.
3. LED display easy for observation.
4. Button adjustment and field settings of various parameters, convenient operation.
5. 2 -way relay output 220V/3A.
6. Strengthen the anti interference design, suitable for all kinds of electromagnetic harsh industrial environment.

Chat Now

2-relay ouptut digital pressure switch controller


Description of 2-relay ouptut digital pressure switch controller

UPS6 2-relay output digital pressure switch controller combines the functions of pressure measurement display as well as control The front head of UPS6 is using high precise pressure sensor its output signal is amplified and processed by high accuracy amplifier, then transmitted into A/D converter to convert the signal to be digital signal that can be processed by micro processor. The processed signal can control two switches, and realize the pressure measurement and control for system.

UPS6  2-relay output digital pressure switch controller is widely used for pressure measurement and control of fluid media in many areas like in electricity, water, petroleum, chemical, mechanical, hydraulic and other industries.




two-relay output digital pressure switch-2.jpg   two-relay output digital pressure switch-3.jpg

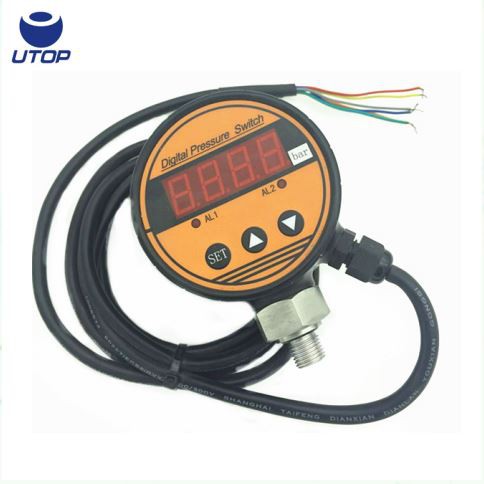

                                             digital pressure swith controller with cable


Features of 2-relay output digital pressure switch controller

◆4-digit 0. 56" LED display, no value error

◆Switch point can be set between zero and span.

◆LED display easy for observation.

◆Button adjustment and field settings of various parameters, convenient operation.

◆2 way relay output 220V/3A.

◆Strengthen the anti interference design, suitable for all kinds of electromagnetic harsh industrial environment.

Specifications of  2-relay output digital pressure switch controller

pressure ranges-1...0~1...1000bar
overload pressure150%FS
pressure typegauge
accuracy0.5%FS
display4 digit LED
display range-1999~9999
consumption<3W
loading capacity3A/220V AC
long-term stability<0.2%FS/year
supply voltage24VDC
operating temperature range-40~+85℃
temperature coefficient of zero0.2%FS/10℃
temperature coefficient of span0.2%FS/10℃
process connectionG1/2 or others
electrical connection6-core cable
housing materialABS engineering plastic
housing diameter82mm
protectionIP 65
