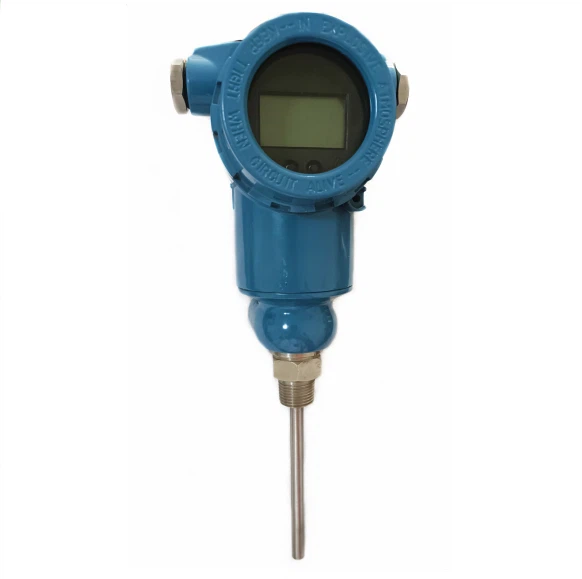

HART Temperature Transmitter
1. Suitable for different temperature transmitter;
2. Compact size, integrated configuration, real-time display;
3. Simple operation, do not use HART communicator, zero and span adjustment,
range-setting,and graduation input can be realized through the keys on panel;
4. Have self-diagnosis function, long-distance configuration;
5. Correcting precision & unit switching.
HART Temperature Transmitter
Description of HART temperature transmitter
Based on the international most advanced digital integration technology, UTI5 HART intelligent temperature transmitter is a new generation intelligent meter for matching the demand of industry automatic controls. UTI5 is made with rigorous structure and artistic outlook. Its hardware uses few primary devices and do not have movable components like potentiometer and so on. This product is featured with simple operation, good reliability and high stability.
UTI5 HART intelligent temperature transmitter realizes communication through HART Protocol; it uses Frequency Shift Keying (FSK) technology according to industrial standard Bell202. Through using a high frequency signal on the 4-20mA output signal to realize long-distance communication.The configuration data is stored in the non-volatility EEPROM memory of transmitter's PCB. These data still could be saved even the power is off; therefore the transmitter can work immediately once it is powered.
UTI5 HART intelligent temperature transmitter is widely used in chemical industry, petroleum industry, metallurgy industry, light industry, food industry electric power, energy management etc.

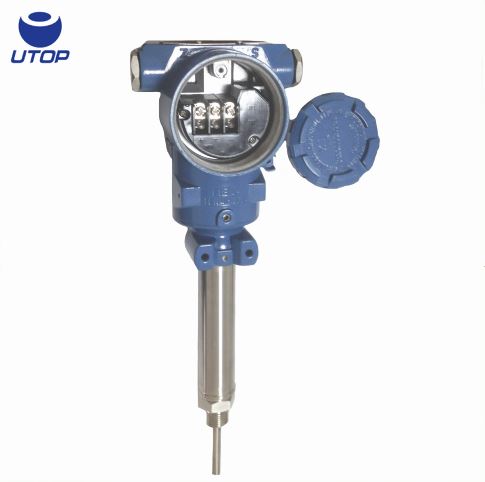

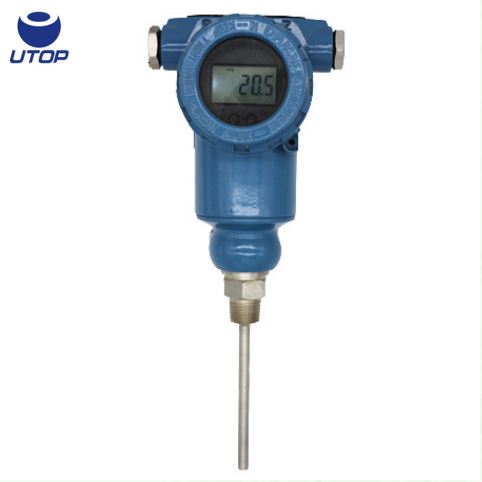

Front side Back side
Features of HART temperature transmitter
◆Suitable for different temperature transmitter;
◆Compact size, integrated configuration, real-time display;
◆Simple operation, do not use HART communicator, zero and span adjustment, range-setting,and graduation input can be realized through the keys on panel;
◆Have self-diagnosis function, long-distance configuration;
◆Correcting precision & unit switching.
Specifications of HART temperature transmitter
| measuring | gas or liquids compatible to stainless steel |
temperature ranges | thermocouple：E:0~750℃; K:0~1200℃;S:0~1300℃; B:0~1600℃ thermoresistor：PT100:-200~500℃ |
| insert depth | 20mm~2000mm(as customer's request) |
| accuracy | 0.5%FS |
| output signal | 4~20mA with HART protocol |
| long-term stability | <0.1%FS/year |
| supply voltage | 12~32V DC |
| insulation resistance | 100MΩ@50VDC |
| operating temperature range | -30~+80℃ |
| display | LCD digital indicator in ℃ unit |
| temperature coefficient of zero | 0.2%FS/10℃ |
| temperature coefficient of span | 0.2%FS/10℃ |
| process connection | M20×1.5 or others |
| electrical connection | M20×1.5 (female) |
| material of wetted part | 304 stainless steel |
| material of housing | cast alaluminium |
| explosive-proof | Exia II BT4,Exd II BT4 |
