Metal Capacitive Pressure Sensor
1. All-welded structure, suitable for measuring many kinds of media.
2. Isolated diaphragm material: 316L, Hustelloy-C, Monel, Tantalum.
3. Measuring ranges: -100...0kPa~1.6kPa...40000kpa.
4. System pressure up to 312bar for differential applications.
5. Pressure type: gauge pressure, absolute pressure, micro differential pressure and differential pressure.
Xi'an UTOP Measurement Instrument Co., Ltd. is one of the most reliable manufacturers and suppliers of metal capacitive pressure sensor in China. Please feel free to buy high quality metal capacitive pressure sensor at competitive price from our factory. If you have any enquiry about price list, please feel free to email us.
Metal Capacitive Pressure Sensor

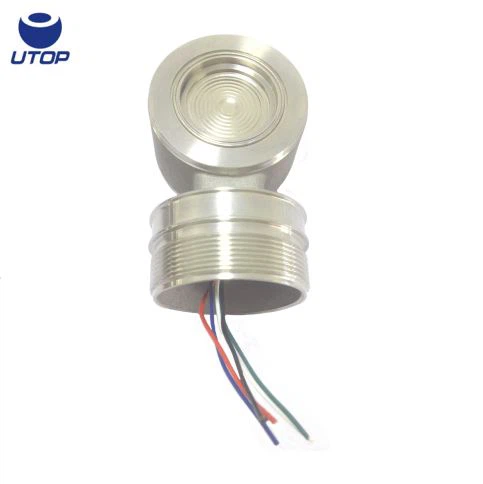

Model: UPX3351
Description
UPX3351 metal capacitive pressure sensor uses two plate capacitors as sensitive elements. The sensor is a complete welded-sealing module, the processing pressure is transmitted to the diaphragm of sensitive element through isolated diaphragm and filled silicon oil, to cause the capacity boards displacement to change, thus makes the changes of capacitive signal.
This metal capacitive pressure sensor can have capacitance signal directly, simultaneously the amplified circuit can also be installed in sensor's neck, to make it have 4~20mA standard output signal.
Features
*All-welded structure, suitable for measuring many kinds of media;
*Isolated diaphragm material: 316L, Hustelloy-C, Monel, Tantalum;
*Measuring ranges: -100…0kPa~1.6kPa…40MPa;
*System pressure up to 312bar for differential applications;
*Pressure type: gauge pressure,absolute pressure, micro differential pressure and differential pressure
*High quality metal capacitive pressure sensor.
Specifications
pressure medium | gas or liquids compatible with316L,Hastelloy-C,Tantalum or Monel |
| pressure ranges | -100...0kPa~1.6kPa...40000kpa |
| pressure type | gauge(G), absolute(A), differential(D) |
system pressure | 10MPa for differential pressure, 4MPa for micro differential pressure 32MPa for high system pressure differential pressure |
| output signal | capacitive signal or 4~20mA |
| accuracy | ±0.2%FS(standard),0.5%FS |
| long-term stability | <0.2%FS/year |
| system pressure effect on zero | 0.5%FS |
| operating temperature range | -40~+100℃ |
| storage temperature range | -40~+120℃ |
| temperature coefficient of zero | 0.25%FS/55℃ |
| temperature coefficient of span | 0.5%FS/55℃ |
| insulation resistance | 500MΩ@100VDC |
| diaphragm material | 316L, option: Hastelloy-C, Tantalum or Monel |
electrical interface | 5 colored PVC wires of differential capacitive signal and temperature signal 2 colored PVC insulated wires of 4~20mA current loop |
| filled oil | silicone oil |
Application
UPX3351 metal capacitive pressure sensor is widely used in drugs manufacturing, food industry as well as environmental protection etc.
